Technical | Winders | South | Engine  >  Cylinders

Section under development

DSC01467a -s

South winder LH rear end-plate - minus the metallic packing gland

DSC01592 -s

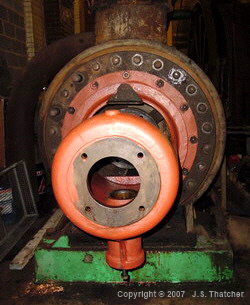

South winder LH tail-rod bearing housing

DSC01501a -s

South winder tail-rod bearing

DSC00243b -s

South winder LH rear end-plate and metallic packing gland

DSC01480a -s

South winder RH cylinder front end-plate  - external view

DSC01468a -s

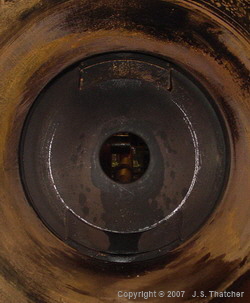

South winder RH cylinder front end-plate  - internal view

DSC01104 -s

South winder LH rear inlet port

DSC01102 -s

South winder LH rear exhaust port

DSC01513a -s

South winder piston rod metallic packing glands
